고에너지 비파괴검사기 시스템
High Energy X-ray Non Destructive Testing(NDT) System(LARONDT Series)
-

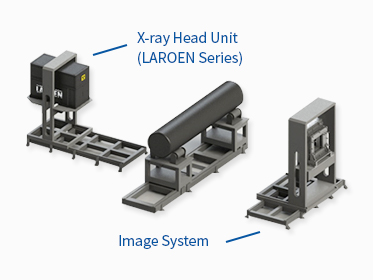

- X-ray Head Unit, Image System
-
-

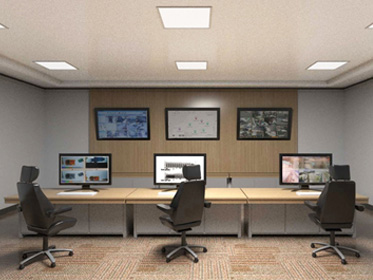

- Control Room
-
LAROEN′s Control Program and Inspection Software
-

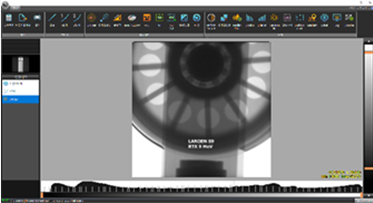

- NDT Image Software
-
Specification
| High Energy Linac | S9 | S6 |
|---|---|---|
| Head Dimensions | ＜ W:900xD:1900xH:1300㎜ | ＜ W:850xD:1700xH:1300㎜ |
| Head Weight(TON) | ＜ 1.5 | ＜ 1.5 |
| X-ray Nominal Energy | 9MeV | 6MeV |
| X-ray Max. Dose Rate | 30Gy/min@1m | 8 Gy/min@1m |
| X-ray Field Size | TBD | |
| Focall Spot Size | ＜ 2.0㎜ | |
| Beam Symmetry | Dose not exceed ±5% within the range of ±7.5º from the beam′s center | |
| Radiographic Quality(steel) |
·During Steel-based film shooting, min. 80㎚ ~ max. 380㎚ ·During Steel-based DR shooting, ~ max. 260㎜ ·System requires image quality of at least ASTM E94 1-2T, ASTM E94 2-2T |
·During Steel-based film shooting, min. 50㎚ ~ max. 250㎚ ·During Steel-based DR shooting, ~ max. 210㎜ ·System requires image quality of at least ASTM E94 1-2T, ASTM E94 2-2T |
| Controll Method | Touch Pad or PC | |
| Cooling System | Water Cooling | |
| Leakage Radiation | Typical : ＜ 0.1%, Option 1 : ＜ 0.02%, Option 2 : ＜ 0.002%, @beam ceterline at ＞60º | |
| Safety System | Warning Alarms, emergency breaker, remote interlock, warning light, warm-up and power status display, error information, and rebooting(Self-sheilding, equipment) | |
※ Cutomizing specification
- Variable Collimator, Image Diaphram, Image Processing System, Software, Rail System, Etc.
- X-ray System : Non destructive Testing System, Container Inspection System, Compact Medical X-ray Generator
LINAC for X-ray Genertor/Line Up
| Model | Energy | Max. Dose (Gy/min@1m) |
Model | Energy | Max. Dose (Gy/min@1m) |
|---|---|---|---|---|---|
| LARONDT-S15 | 15MeV (option: Variable Energy) |
120 | LARONDT-S9 | 9MeV (option: Variable Energy) |
30 |
| LARONDT-S6 | 6MeV (option: Variable Energy) |
8 | LARONDT-S4 | 4MeV (option: Variable Energy) |
4 |
| LARONDT-S3 | 3MeV (option: Variable Energy) |
3 | LARONDT-S2 | 2MeV (option: Variable Energy) |
2 |
| LARONDT-S1 | 1MeV (option: Variable Energy) |
1 |
