기계사업부

컨테이너 검색기 시스템

Container(Trailer) X-ray Inspection System(LAROSCAN Series)

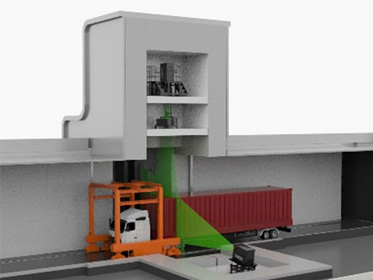

  • Container Inspection System

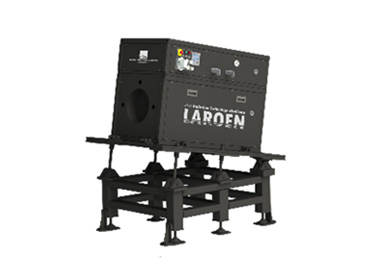

  • X-ray Head Unit(Horizontal)

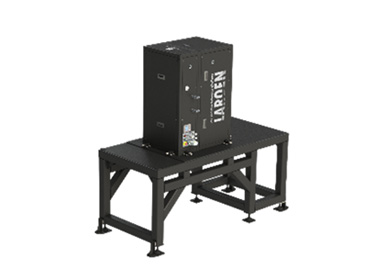

  • X-ray Head Unit(Vertical)

Specification

  • LAROSCAN-S9
    • Category
      High Energy X-ray Cargo Inspection System
    • Model
      LAROSCAN-S9
    • Specifications
      ·X-ray Energy : Dual 9/6MeV(LAROEN S9)
      ·Tunnel size : 50m(L)x6.7m(W)x5.8m(H)
      ·Penetration : 430㎜
      ·Wire resolution(copper wire) : 0.6㎜
      ·Vechicle Throughout : up to 12per hour

Specification

Items Specifications Options
X-ray Generator(LAROEN S9) ·Dual Energy : 9/6MeV
·Focal Spot Size : < 2㎜
·Beam Symmetry : ≤ ±5% within the range of ±7º from beam center
·Leaking Radiation : < 0.002%
·Dual Energy, 9/5MeV
·Super Ultra Leakage
·Radiation : < 0.0003%
Detector System ·CdWO4 Photodiode type(Coupled Scintillator)
·Cell Pitch Size / Efficiency : 4.6㎜ / adove 70%
·Pixel : Horizontal_1408(44*32), Vertical_1088(34*32)
·Alignment Accuracy : ±1㎜
·Dual Energy Processing time : < 3second
Moving System ·Overall Size : 5.0m(L)x5.6m(W)x1.2m(h)
·Nominal Scan speed 350㎜/sec(Variable)
·Throughput : 12Trailer/hour
·Traction : Max. 70T
·Max. 450mm/s
·100T

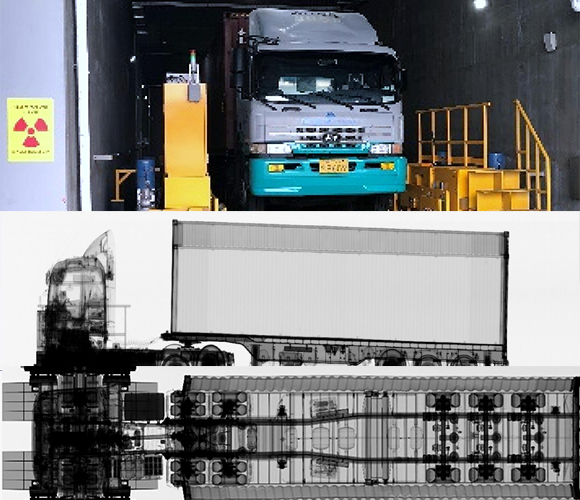

X-ray Image ·Real-time image manipulation
·Histogram Equallization
·Edge Enhancement
·NUREG-700 Rev2 Human System
Server Network ·> 1Gbps
Operation ·Temp : 0~60℃, humidity : 5~95%, Input voltage : 3phase, 380V, 50/60㎐ ·3phase 420V, 50/60㎐
Training ·RTX corporation

LAROSCAN series for CIS systetm/Line Up

Model Energy Operation
Type
Model Energy Operation
Type
LAROSCAN-S9 9MeV
(option: Dual Energy)
Fixed type LAROSCAN-S6 6MeV
(option: Dual Energy)
Fixed type
LAROSCAN-S4 4MeV
(option: Dual Energy)
Fixed type LAROGENT-S9 9MeV
(option: Dual Energy)
Gentry type
LAROGENT-S6 6MeV
(option: Dual Energy)
Gentry type LAROGENT-S4 4MeV
(option: Dual Energy)
Gentry type
LAROGENT-S2 2MeV
(option: Dual Energy)
Gentry type LARODRIVE-S6 6MeV
(option: Dual Energy)
Drive-through type
