기계사업부

고에너지 선형가속기 시스템

High Energy X-ray LIANC System(LAROEN Series)

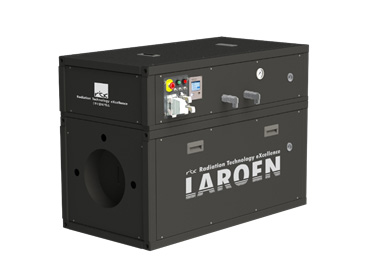

  • X-ray Head Unit

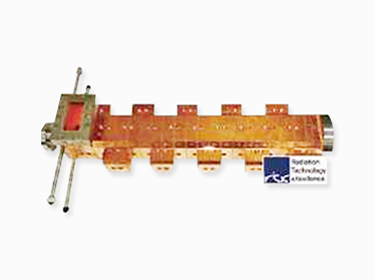

  • High Energy Electron Linear Acclerator cavity

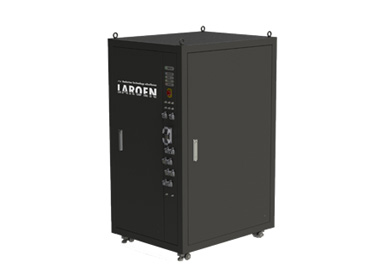

  • Power Unit

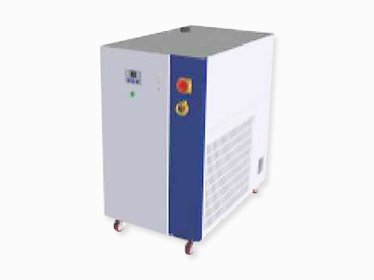

  • Cooling Unit

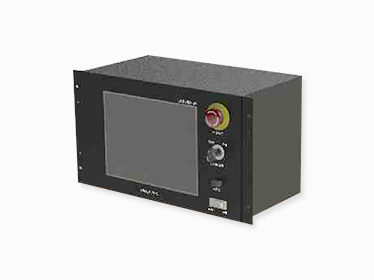

  • Control Unit

LAROEN′s Control Program and Inspection Software

  • Control Software

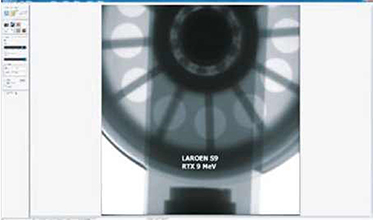

  • Image Software

Specification

High Energy Linac S9 S6
Head Dimensions < W:900xD:1900xH:1300㎜ < W:850xD:1700xH:1300㎜
Head Weight(TON) < 1.5 < 1.5
X-ray Nominal Energy 9MeV 6MeV
X-ray Max. Dose Rate 30Gy/min@1m 8 Gy/min@1m
X-ray Field Size TBD
Focall Spot Size < 2.0㎜
Beam Symmetry Dose not exceed ±5% within the range of ±7.5º from the beam′s center
Radiographic Quality(steel) ·During Steel-based film shooting,
min. 80㎚ ~ max. 380㎚
·During Steel-based DR shooting,
~ max. 260㎜
·System requires image quality of at least
ASTM E94 1-2T, ASTM E94 2-2T
·During Steel-based film shooting,
min. 50㎚ ~ max. 250㎚
·During Steel-based DR shooting,
~ max. 210㎜
·System requires image quality of at least
ASTM E94 1-2T, ASTM E94 2-2T
Controll Method Touch Pad or PC
Cooling System Water Cooling
Leakage Radiation Typical : < 0.1%, Option 1 : < 0.02%, Option 2 : < 0.002%, @beam ceterline at >60º
Safety System Warning Alarms, emergency breaker, remote interlock, warning light, warm-up and power status display, error information, and rebooting(Self-sheilding, equipment)

※ Cutomizing specification
- Variable Collimator, Image Diaphram, Image Processing System, Software, Rail System, Etc.
- X-ray System : Non destructive Testing System, Container Inspection System, Compact Medical X-ray Generator

LINAC for X-ray Genertor/Line Up

Model Energy Max. Dose
(Gy/min@1m)
Model Energy Max. Dose
(Gy/min@1m)
LAROEN S15 15㎹, 0.1㎃ 120 LAROEN S9 9㎹, 0.1㎃ 30
LAROEN S6 6㎹, 0.1㎃ 8 LAROEN S5 5㎹, 0.1㎃ 5
LAROEN S4 4㎹, 0.1㎃ 4 LAROEN S3 3㎹, 0.1㎃ 3
LAROEN S2 2㎹, 0.1㎃ 2 LAROEN S1 1㎹, 0.1㎃ 0.95
LAROEN S0.5 0.5㎹, 0.1㎃ -
